DJI Mavic 2 Pro specifications

Data sheet - DJI Mavic 2 Pro technical data.

With the DJI Mavic 2 Pro it's called “See the Bigger Picture” - and to capture the entire picture of the new camera drone from the world's largest manufacturer, you get the most important technical data of the DJI Mavic 2 Pro data sheet here. You get all information and specifications, an FAQ, lots of pictures and videos as well as the possibility to buy the drone in the DJI online shop. Of course, there is also the DJI Mavic 2 Zoom.

Technical data from the DJI Mavic 2 Pro data sheet can be found here - information and details about the aircraft, camera, gimbal, battery, controller and delivery.

Technical data from the DJI Mavic 2 Pro data sheet can be found here - information and details about the aircraft, camera, gimbal, battery, controller and delivery.

Technical data: DJI Mavic 2 Pro data sheet

With the DJI Mavic 2 Pro, the professional manufacturer of cameras and drones wanted to design a drone that combined engineering, modern technology and the wishes and feedback of professional users. The result is that drone presented on August 23, 2018that particularly caters to the needs of photographers and filmmakers. From the DJI Mavic 2 Pro data sheet, these are the most important technical data:

Drone

  • Dimensions, folded (L x W x H): 214 mm × 91 mm × 84 mm
  • Dimensions, unfolded (L x W x H): 322 mm × 242 mm × 84 mm
  • Diagonal: 354 mm
  • Weight: 907 g
  • Maximum climbing speed: 5 m / s
  • Maximum landing speed: 3 m / s
  • Maximum speed: 72 km / h (near sea level, no wind)
  • Maximum altitude above sea level: 6.000 m
  • Flight time at 25 km / h without wind: 31 minutes
  • Floating time without wind: 29 minutes
  • Flight distance: up to 18 km (observe regulations and laws!)
  • Wind resistance: up to 31 km / h
  • Operating temperature: -10 ° C to + 40 ° C
  • Dual band WLAN radiation: 2,400 - 2,483 GHz (FCC: ≤26 dBm, CE: ≤20 dBm, SRRC: ≤20 dBm, MIC: ≤20 dBm); 5,725-5,850 GHz (FCC: ≤26 dBm, CE: ≤14 dBm, SRRC: ≤26 dBm)
  • Geolocation via: GPS and GLONASS
  • Hover accuracy vertical: ± 0,1 m (with visual positioning), ± 0,5 m (with GPS positioning)
  • Hover accuracy horizontal: ± 0,3 m (with visual positioning), ± 1,5 m (with GPS positioning)
  • Internal memory for photos and videos: 8 GB
  • Memory expansion: microSD cards with up to 128 GB (SanDisk V30 cards are recommended)

Recommended reading: DJI Mavic Air - which SD card is compatible?

Mavic 2 Pro camera

  • Image sensor: 1 ″ CMOS (20 million actual pixels)
  • Lens: 35 mm format as 28 mm equivalent with a 77 ° field of view and f / 2.8-f / 11 aperture as well as a recording range from 1 m to ∞
  • ISO range (photo): 100 to 3.200 in automatic mode; 100 to 12.800 in manual mode
  • ISO range (video): 100 to 6400
  • Exposure time: 1/8000 s to 8 s with electronic shutter
  • Image size: 5.472 x 3.648 pixels
  • Video resolution: 4K (3.840 × 2.160) with 24, 25 or 30 fps; 2,7K (2.688 x 1.512) at 24, 25, 30, 48, 50 or 60 fps; Full HD (1.920 x 1.080) with 24, 25, 30, 48, 50, 60 or 120 fps
  • Video formats: MP4 / MOV (MPEG-4 AVC / H.264, HEVC / H.265)
  • Maximum bit rate: 100 Mbit / s
  • Color modes: Dlog-M (10 bit), supports HDR video (HLG 10 bit)
  • Photo modes: single picture, series pictures, bracketing, interval (2 to 60 seconds, varying modes for JPEG and RAW pictures)
  • Photo formats: JPEG, DNG (RAW)
  • Supported file systems: FAT32 (≤32 GB), exFAT (> 32 GB)

Recommended reading: The best SD card for the DJI Spark drone

Gimbal

  • 3-axis stabilization (pan, roll, tilt)
  • Possible mechanical range: -135 ° to 45 ° tilt; -100 ° to 100 ° swivel
  • Controlled Range: -90 ° to 30 ° tilt; Pan -75 ° to 75 °
  • Maximum controlled speed: 120 ° / s (tilting)
  • Angular accuracy: ± 0,01 °

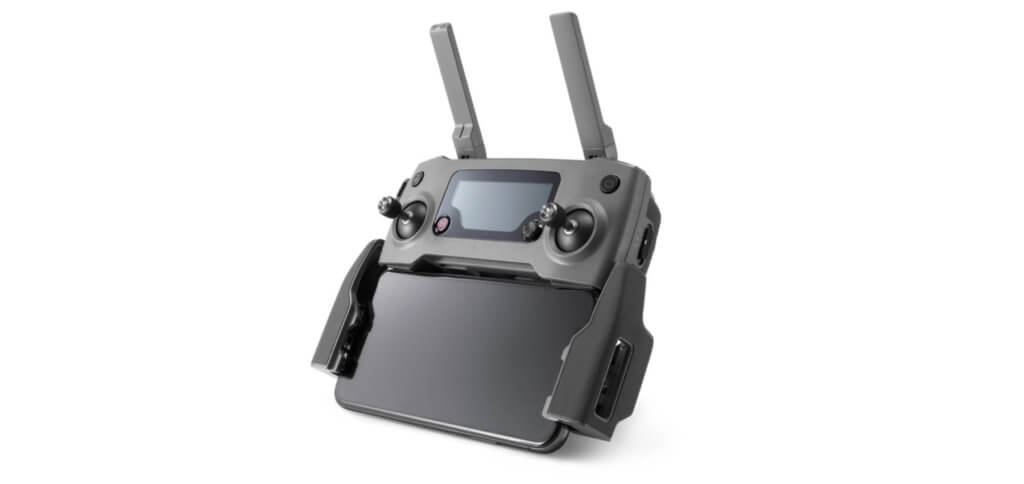

Remote control / controller

  • Dual band WiFi frequencies: 2.400 - 2.483 GHz; 5.725 - 5.850 GHz
  • Maximum range: FCC up to 8 km, CE up to 5 km, SRRC up to 5 km, MIC up to 5 km
  • Operating temperature: 0 ° C to 40 ° C
  • Radiated power: see data for the DJI Mavic 2 Pro aircraft
  • Battery: Rechargeable battery with 3.950 mAh
  • Operating current / operating voltage: 1,8 A / 3,83 V.
  • Supported maximum dimensions for smartphone: 160 mm length; 6,5 - 8,5 mm depth
  • Supported USB interfaces: USB-C, Micro-USB (Type B), Lightning

Intelligent Flight Battery (DJI Mavic 2 Pro battery)

  • Battery type: LiPo 4S
  • Nominal capacity: 3.850 mAh
  • Voltage: V 15,4
  • Energy: 59,29 Wh
  • Weight: 297 g
  • Max. Charging voltage: 17,6 V
  • Max. Charging current: 80 W.
  • Charging temperature: 5 ° C to 40 ° C

DJI Mavic 2 Pro scope of delivery

  • 1 x aircraft
  • 1 x remote control
  • 1 x Intelligent Flight Battery
  • 1 x charger
  • 1 x power cord
  • 3 x pair of propellers
  • 1 x USB-C, Micro-USB and Lightning-RC cable each
  • 1 x gimbal protection
  • 1 x USB-C data cable
  • 1 x USB adapter (charger)
  • 1 x RC cable slider large; 2 x RC cable slider small
  • 1 x pair of replacement control sticks

DJI GO 4 app

For controlling the DJI Mavic 2 Pro as the DJI Mavic 2 Zoom and / or tracking live video, the DJI GO 4 app for iOS or Android is required. This enables the transmission of video with 720p @ 30fps and 1080p @ 30fps on the mobile phone, via DJI Goggles and via the DJI Goggles RE. The video transmission system used is OcuSync 2.0. The maximum bit rate for the live transmission is 40 Mbit / s, and at least iOS 9.0 or Android 4.4.0 is required. Depending on the smartphone or tablet, a latency of 120 to 130 ms is possible. You can find the DJI GO 4 download in Apple App Store as well as in the Google Play Store.

Even more DJI Mavic 2 Pro technical data

Even more technical data from the DJI Mavic 2 Pro data sheet can be found in the DJI Store, where you can also buy the new camera drone; also in combination with the Fly More Kit (here.), with which you can not only fly longer and take more photos and videos, but also save a three-digit amount compared to buying the included accessory products individually. If you have any questions or the right answers to questions asked, please leave a comment! You can find more articles, reviews, test experiences and opinions on DJI drones (including the DJI Mavic 2 Zoom), accessories, SD memory cards and recordings here in the blog ;)

-
